On-Grid Solar Panel System

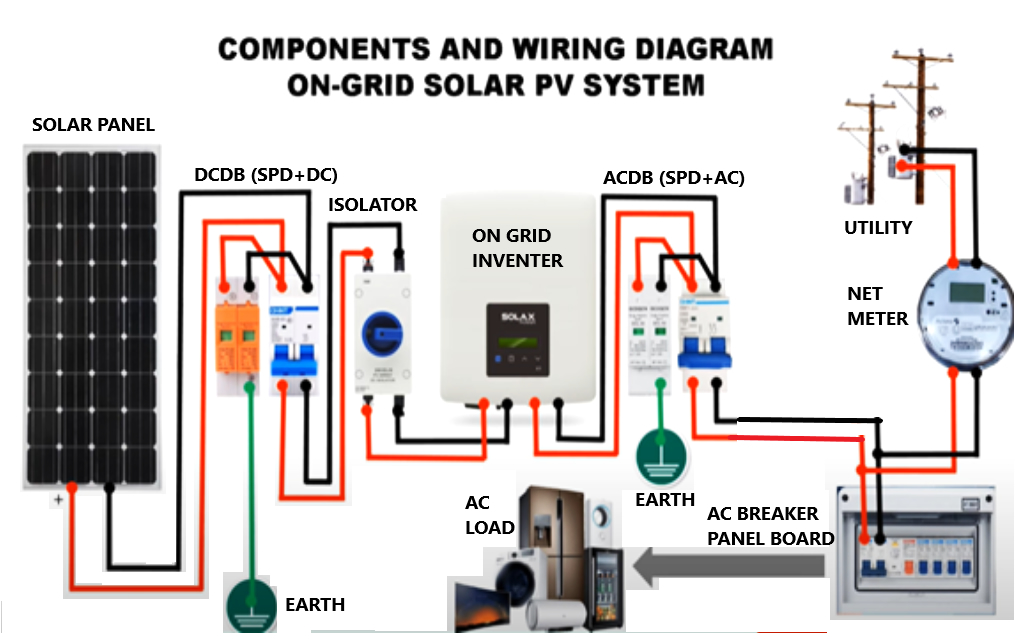

System Components

• Solar Panels:

  Convert sunlight into DC power

• Mounting System:

  Secures solar panels to the roof or ground

• Inverter:

  Converts DC power to single-phase AC power (230V)

• Grid Tie:

  Connects the system to the utility grid

• Net Meter:

  Measures excess energy fed back into the grid

• Grounding System:

  Ensures electrical safety

• Monitoring System:

  Tracks energy production and system performance

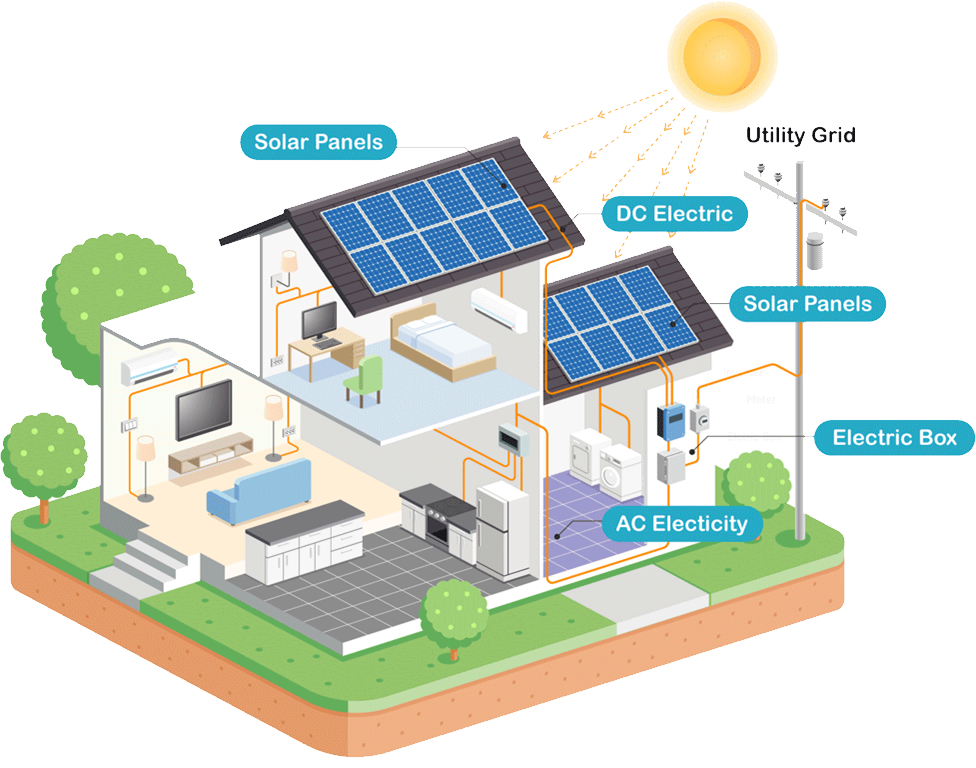

System Operation

• Solar panels generate DC power
• Inverter converts DC power to single-phase AC power
• AC power is fed into the electrical panel
• Excess energy is fed back into the grid through the grid tie
• Net meter measures excess energy and calculates energy credits
• Energy credits are used to offset energy consumption during nighttime or low-sun periods
